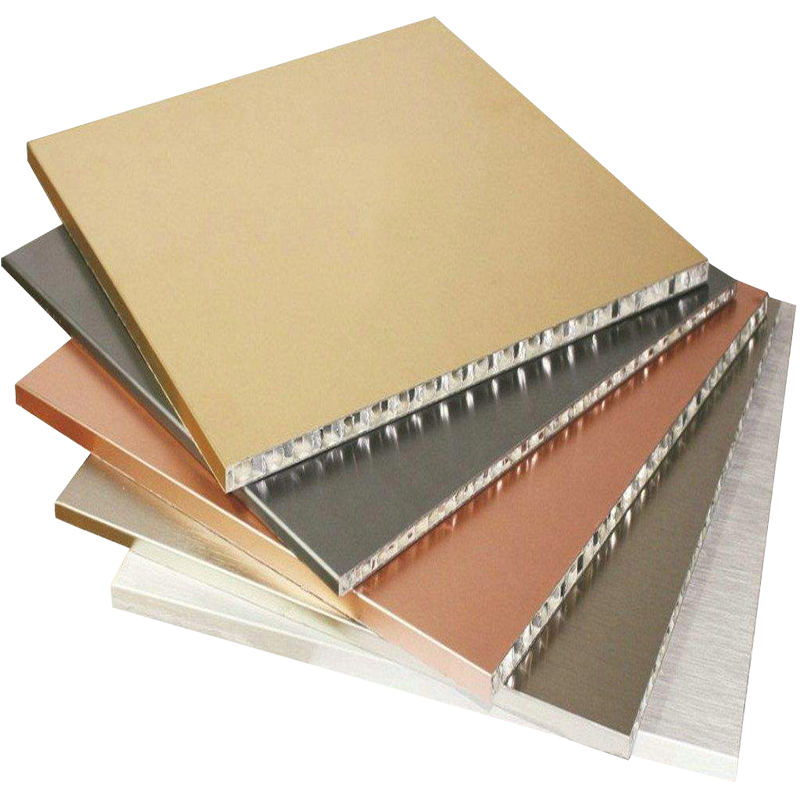

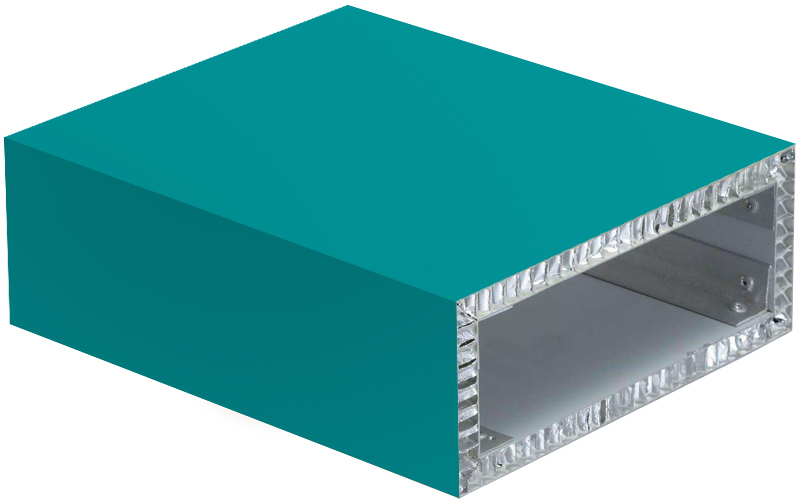

Aerospace Pvdf Insulations Aluminum Honeycomb Panel

Advanced Composite for Demanding Environments

Engineered to meet aerospace-grade performance standards, our PVDF-insulated aluminum honeycomb panel delivers unmatched strength-to-weight ratios for mission-critical applications. The hexagonal core structure bonded with PVDF-coated aluminum skins achieves extreme rigidity (up to 18,000 psi compressive strength) while maintaining ultra-low density (as light as 3.6 lbs/ft³). Ideal for aircraft interiors, satellite components, and high-speed transport systems requiring vibration damping and thermal stability.

Critical Performance Features

1.Aerospace-Certified Construction

• AS9100D-certified manufacturing with 100% traceable aluminum alloys

• Seamless integration of 5052/6061 aerospace-grade skins and PVDF insulation layer

• Passes FAR 25.853 flammability tests (5s vertical burn, smoke density <200)

2.PVDF Super Shield Technology

• 25μm PVDF fluoropolymer coating provides:
  ✓ Chemical resistance against jet fuels & hydraulic fluids
  ✓ UV stability (20+ years color retention per ASTM G154)
  ✓ Anti-icing surface with 0.38μRa smoothness

3.Thermal & Acoustic Optimization

• Thermal conductivity: 0.8-1.2 W/(m·K) (-50°C to 150°C)

• Noise reduction coefficient (NRC): 0.75-0.85 (Tested per ASTM C423)

• Customizable core density (1/8" to 1" cell sizes)

Technical Specifications

Aerospace & Cross-Industry Applications

✈️ Aircraft Systems: Floor panels, cargo linings, radome substrates
️ Space Tech: Satellite baffles, launch vehicle insulation
Transportation: High-speed train ceilings, marine bulkheads
️ Architecture: Fire-rated curtain walls, cleanroom partitions

Competitive Advantages

• Precision Machining: Waterjet/Laser cutting services with ±0.005" tolerance
• Rapid Prototyping: 5-day lead time for non-standard configurations
• Quality Assurance: 100% eddy current testing on all welds
• Sustainability: 85% recyclable content, REACH/ROHS compliant
