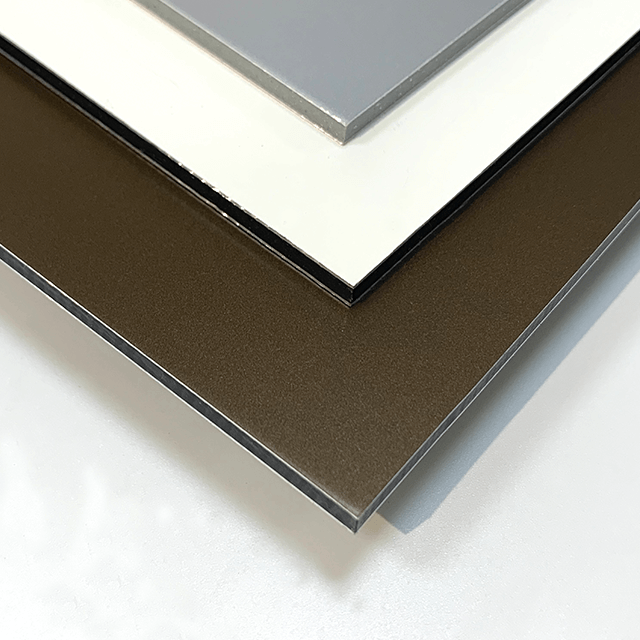

Aluminum Composite Panel

Aluminum Composite Panel

Widely used, bendable, foldable, various colors and styles

Product Specifications

Thickness： 3mm, 4mm (1mm,1.5mm, 2mm, 5mm is also available)

Width: 1,220mm – 1,600mm

Length: 2,440mm (or customized)

Thickness of Aluminum: Aluminum Thickness 0.12/0.12mm for Board Thickness 3mm

(Or Customized from 0.05/0.05mm-0.21/0.21mm) Aluminum Thickness 0.40/0.40 for Board

Thickness 4mm (Or Customized from 0.08/0.08mm- 0.50/0.50mm)

Coating: PE Coating for Board Thickness 3mm (Or Customized)

PVDF Coating for Board Thickness 4mm Nano coating is availabe

Length: 2440mm (can be customized)

Product Introduction

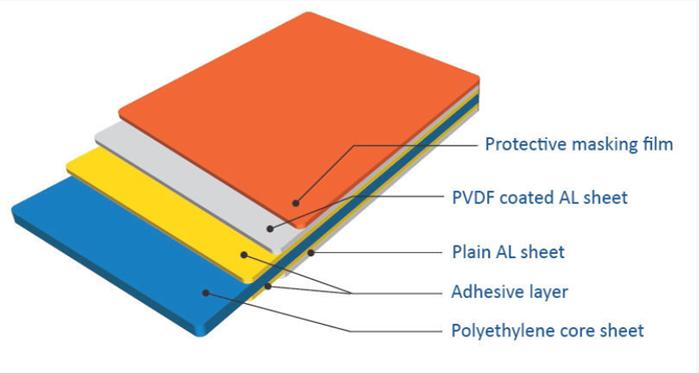

The product incorporates modified polyethylene plastic core

layer in the middle that is nontoxic, enclosed with nonflammable

aluminum layers on both faces, and coated with fluorocarbon resin

(PVDF) or PE coating on its surface, featuring high brightness,

flatness, elegant surface coating, strong intention, lightweight,

superexcellent forming performance, durable, simple, quick

processing & installation and outstanding fireproof performance.

For protection, a protective film is used to cover the surface of

finished product.

Product Mix

Technical Data Sheet

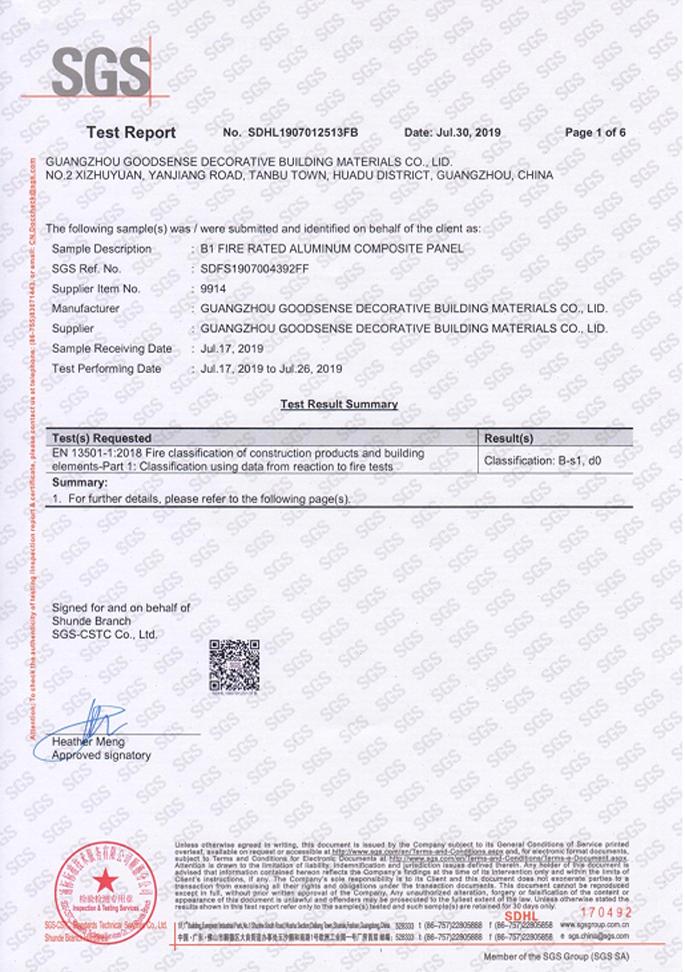

Fire Classification

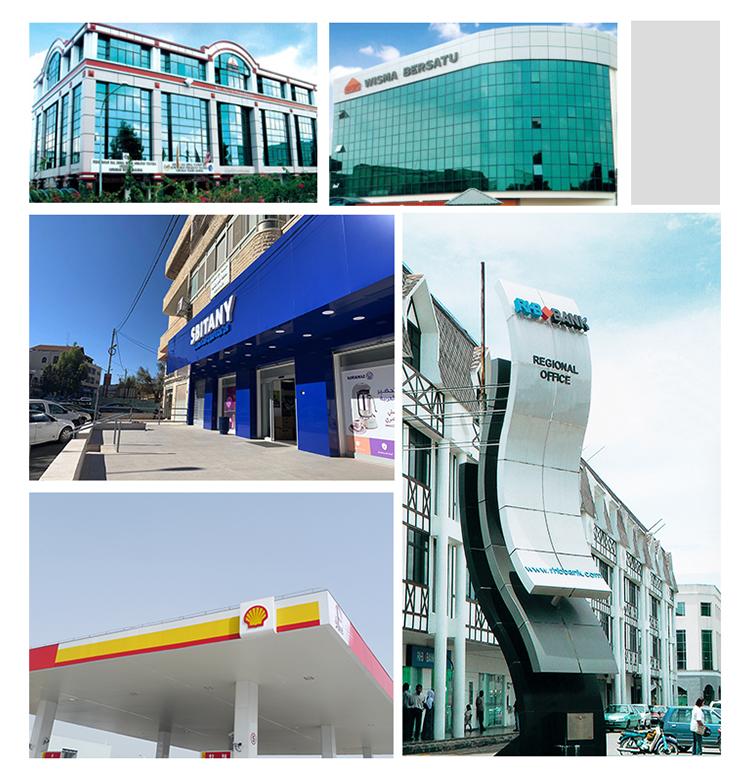

Applications
