Advanced Aluminum Core Composite Panel (ACCP) Technology

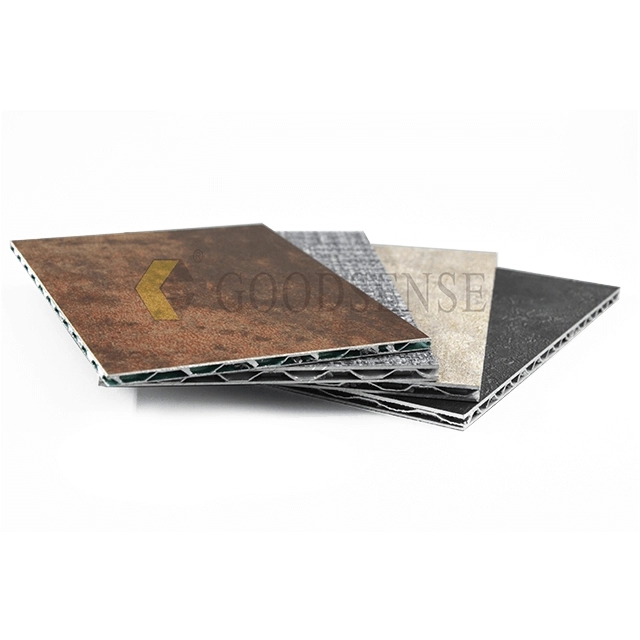

What is Aluminum Core Composite Panel (ACCP)?
ACCP represents the latest evolution in composite panel technology, combining the strength of traditional aluminum composite materials with innovative core engineering. Developed by Goodsense, a leading manufacturer with over 25 years of industry experience, our aluminum core composite panels deliver exceptional performance for demanding architectural applications.
Unlike standard aluminum composite panels or aluminum honeycomb panels, ACCP features an advanced all-aluminum structure that eliminates polyethylene components while maintaining optimal weight-to-strength ratios. This breakthrough composition results in a building material that's simultaneously:
Premium Aluminum Core Composite Panel Products
Key Benefits of Aluminum Core Composite Panels
Unmatched Strength-to-Weight Ratio
Our proprietary aluminum core technology delivers exceptional rigidity while maintaining a lightweight profile. This allows architects and builders to create ambitious designs without compromising structural integrity. At just [specific weight] kg/m², ACCP panels are up to 30% lighter than traditional cladding materials of comparable strength.
A2 Fire Rating Certification
Safety is paramount in modern construction. Our aluminum core composite panels achieve the stringent A2 fire rating (EN 13501-1), making them ideal for high-rise buildings, public facilities, and other applications where fire safety is critical. Unlike composite panels containing polyethylene cores, ACCP's all-aluminum construction drastically reduces fire propagation risk.
Environmental Sustainability
ACCP panels are manufactured with sustainability in mind. The 100% recyclable aluminum construction minimizes environmental impact while our energy-efficient production facility, equipped with photovoltaic power generation, further reduces our carbon footprint. Choose ACCP for LEED, BREEAM, and other green building certification projects.
Superior Weather Resistance
Engineered to withstand harsh environmental conditions, our aluminum core panels feature exceptional resistance to:
UV radiation degradation
Moisture penetration
Temperature fluctuations (-50°C to +80°C)
Corrosive environments
Technical Specifications & Performance Data
Standard Dimensions
| Parameter | Specification |
| Standard Thickness | 3mm, 4mm |
| Standard Width | 1220mm, 1500mm |
| Standard Length | 2440mm, 3050mm, 4000mm, 6000mm |
| Custom Sizes | Available upon request |
Physical Properties
| Property | Value | Test Standard |
| Density | 1.7-1.9 g/cm³ | ASTM D792 |
| Weight | 5.1-12.6 kg/m²(depending on thickness) | - |
| Tensile Strength | ≥130 MPa | ASTM E8 |
| Flexural Strength | ≥120 MPa | ASTM C393 |
| Flexural Modulus | ≥45 GPa | ASTM C393 |
| Thermal Expansion | 2.3×10⁻⁵/°C | ASTM D696 |
| Thermal Conductivity | 0.46 W/(m·K) | ASTM C518 |
| Sound Insulation | 26-29 dB | ISO 717-1 |
Fire Performance
| Classification | Rating | Test Standard |
| European Standard | A2-s1, d0 | EN 13501-1 |
| NFPA Standard | Class A | NFPA 285 |
| British Standard | Class 0 | BS 476 |
Finish Options
Versatile Applications for Aluminum Core Composite Panels

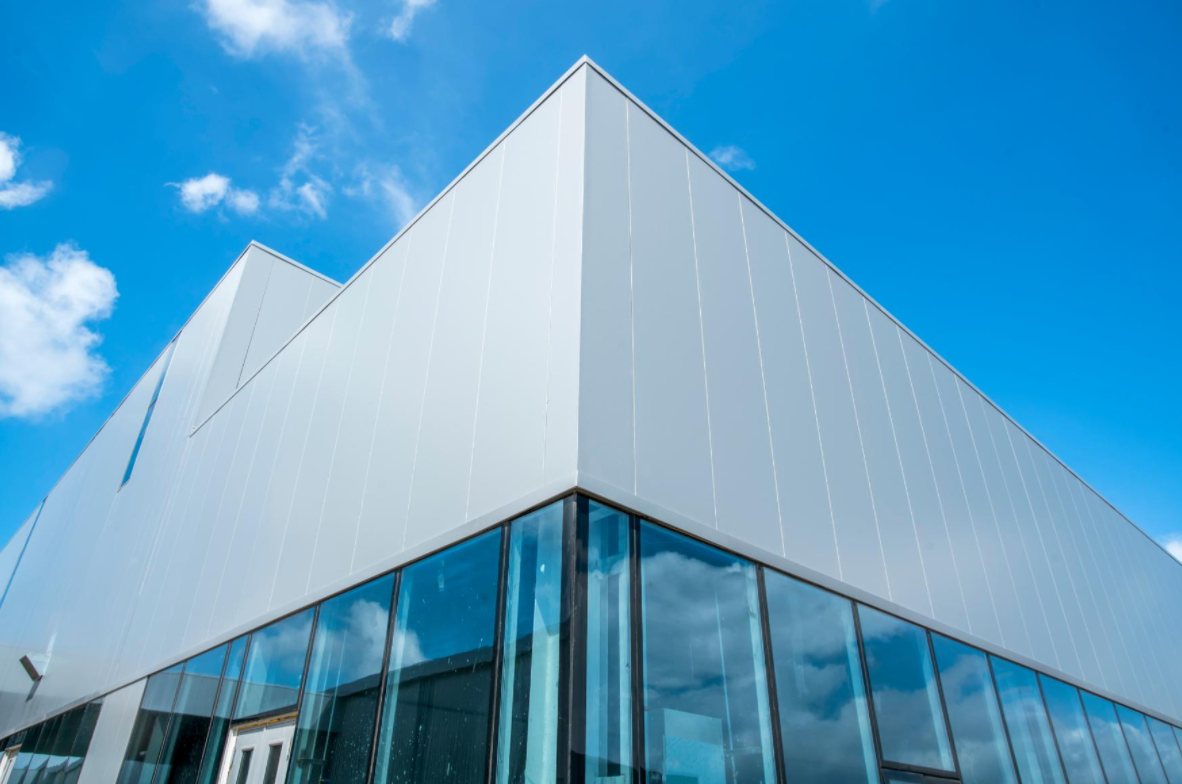

Commercial Facades
Modern office buildings demand materials that combine aesthetic appeal with functional performance. Our aluminum core composite panels provide architects with the design flexibility to create stunning visual statements while ensuring structural integrity, weather resistance, and fire safety.
Retail & Hospitality
Create memorable first impressions with ACCP's versatile finish options. From luxury hotels to shopping centers, our panels deliver the perfect balance of visual impact and practical durability, with minimal maintenance requirements.
Transportation Infrastructure
Airports, train stations, and other transportation hubs benefit from ACCP's exceptional durability and ease of maintenance. The lightweight nature of our panels also reduces structural load requirements.
Industrial Applications
For industrial facilities requiring clean, modern aesthetics combined with robust performance, aluminum core composite panels provide an ideal solution that withstands harsh operating conditions.
Installation & Technical Support
Installation Systems
Our aluminum core composite panels are compatible with multiple installation methods:
Cassette System
The concealed fixing system creates a sophisticated, seamless appearance ideal for premium architectural applications.
Revealed Fixing System
Cost-effective installation with visible fixings, suitable for industrial and functional applications.
Structural Glazing System
Integration with glass curtain wall systems for contemporary architectural designs.
Technical Support Services
Goodsense provides comprehensive technical support throughout your project:
Pre-installation consultation
Detailed CAD drawings and specifications
On-site technical assistance
Installation training for contractors
Post-installation inspection and verification
Environmental Commitment & Sustainability
100% Recyclable Materials
Energy-Efficient Manufacturing
Solar photovoltaic power generation
Energy recovery systems
Waste heat utilization
Water recycling technology
Green Building Certification Contribution
Environmental Certifications

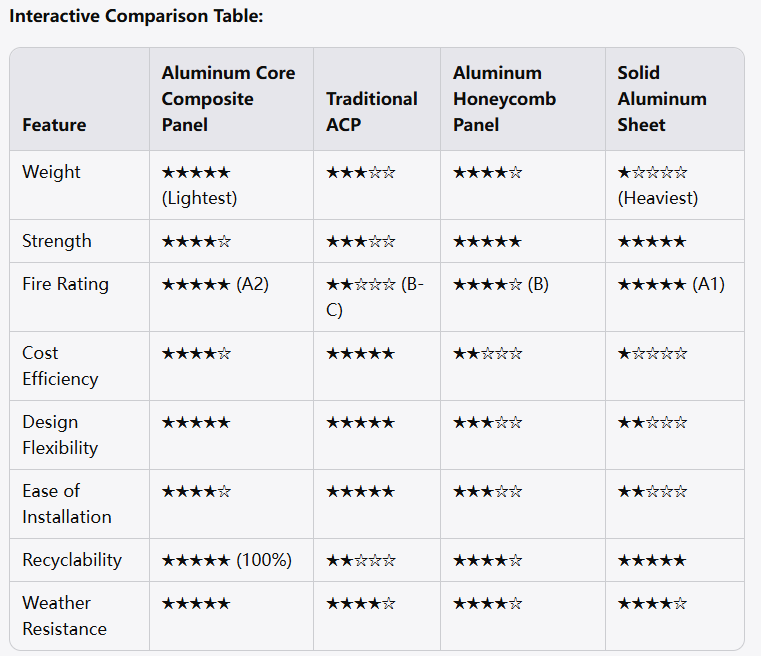

Why Choose Aluminum Core Composite Panels Over Alternatives?
Quality Control & Testing
Material Inspection
Production Monitoring
Laboratory Testing
Color consistency verification
Third-Party Certification
Custom Manufacturing Solutions
Custom Color Matching
Custom RAL colors
Pantone color matching
Corporate brand colors
Architectural specification colors
Special Finishes
Beyond standard finishes, we offer specialized surface treatments:
Anti-graffiti coating
Self-cleaning hydrophobic treatment
Enhanced UV protection for extreme environments
Anti-bacterial treatment for healthcare facilities
Custom Dimensions
Our flexible manufacturing capabilities allow for custom panel dimensions to minimize waste and optimize installation efficiency.
FAQs About Aluminum Core Composite Panels
Q1: What is the difference between aluminum core composite panel and traditional aluminum composite panel?
Q2: What fire rating do your aluminum core composite panels achieve?
Q3: Can aluminum core composite panels be curved or bent?
Q4: What is the warranty period for your aluminum core composite panels?
Q5: Are aluminum core composite panels suitable for coastal environments?
Q6: What are the minimum order quantities?
Q7: How does the cost of aluminum core composite panels compare to other facade materials?
Q8: What thickness of aluminum core composite panel is recommended for exterior facades?
