Aluminum Composite Material (ACM) panels are revolutionizing modern construction. With their durability, versatility, and sleek appearance, these panels are ideal for both interior and exterior applications.
In this article, we will define what ACM panels are, explore their key benefits, common uses, manufacturing process, and installation guidelines. By the end, you’ll have all the insights you need to decide if ACM panels are the right choice for your next project.
An ACM metal panel is a type of composite material consisting of two pre-painted aluminum sheets surrounding a core material. The core is usually polyethylene (PE) or a fire-retardant substance. This structure gives ACM panels their strength, durability, and flexibility, making them suitable for various applications, especially in modern architectural designs. The manufacturing process involves bonding the aluminum sheets to the core material through a continuous lamination process, ensuring a smooth, flat, and durable finish.Key Components of ACM Panels
ACM panels consist of the following three key components:
1. Aluminum Sheets: These outer layers provide strength, durability, and a sleek, modern appearance.
2. Core Material: The core, usually made of polyethylene or fire-retardant material, gives the panel its rigidity while reducing weight.
3. Coating: The aluminum sheets are coated with a protective layer, often made of PVDF (polyvinylidene fluoride), to enhance weather resistance and aesthetic appeal.
Depending on the intended use, manufacturers may offer different types of core materials. Polyethylene cores are typically used for lighter, more affordable panels, while fire-retardant cores are used for buildings requiring additional fire safety compliance.
Component | Description |
Aluminum Sheets | Two pre-painted aluminum sheets that provide durability and strength. |
Core Material | Typically polyethylene (PE) or fire-retardant material (FR) that offers insulation and rigidity. |
ACM panels are available in a range of thicknesses, typically from 3mm to 6mm, depending on the application requirements. The thickness affects both the panel’s durability and its weight. For instance:
● 3mm panels are commonly used for indoor applications or smaller structures.
● 4mm panels strike a balance between weight and strength, ideal for standard wall cladding.
● 6mm panels are more robust and suitable for larger facades and applications that require high durability.
ACM panels are known for their excellent weather resistance. The aluminum sheets provide a tough outer layer, while the core material resists moisture and temperature extremes. This makes them ideal for outdoor use in all climates, from high heat to freezing temperatures. Moreover, the fluorocarbon coatings often used on ACM panels protect them against UV rays, pollution, and corrosion, ensuring a long lifespan.
One of the most significant advantages of ACM panels is their low weight compared to traditional materials like solid metal or stone. This makes them easy to handle and install, reducing both labor costs and installation time. Despite their light weight, ACM panels are highly durable and can withstand impact, making them ideal for both residential and commercial buildings.
ACM panels offer extensive design flexibility. Available in a wide range of colors, finishes, and textures, including wood, marble, and metallic effects, these panels can be customized to fit any aesthetic vision. The smooth, glossy finish and ability to print graphics directly on the surface make ACM panels perfect for modern architectural designs.
Certain ACM panels are made with fire-retardant cores, offering increased fire resistance. These panels meet the stringent fire safety requirements of modern construction codes. Fire-resistant ACM panels are particularly valuable in high-rise buildings and other structures where fire safety is a top priority.
Advantage | Description |
Lightweight | Easy to handle and install, reducing labor costs. |
Weather Resistant | Excellent performance in extreme temperatures and UV exposure. |
Aesthetic Flexibility | Available in various colors, finishes, and patterns to match design needs. |
Fire Resistance | Some ACM panels offer fire-retardant properties. |
ACM panels are widely used in exterior cladding and facade systems for both new buildings and renovations. Their durability, combined with their modern appearance, makes them ideal for enhancing the aesthetic appeal of commercial and residential structures. ACM panels provide long-term protection against the elements while maintaining a sleek, clean finish.
The lightweight and customizable nature of ACM panels make them a popular choice for both outdoor and indoor signage. Their resistance to environmental wear ensures that they maintain their appearance, even in harsh weather conditions. ACM panels are commonly used in point-of-purchase displays, billboards, and branding elements for businesses.
Inside buildings, ACM panels are used for wall cladding, partitions, and decorative panels. They are an excellent choice for areas that require easy maintenance, as they are resistant to stains and damage. ACM panels are commonly seen in offices, airports, shopping malls, and exhibitions.
ACM panels are also used in industrial applications such as vehicle interiors, equipment housings, and machinery panels. Their strength, low weight, and durability make them ideal for use in environments where reliability is crucial.
The manufacturing process of ACM panels involves bonding two layers of aluminum to a core material, typically polyethylene or fire-retardant material. The process begins with pre-painting the aluminum sheets, followed by continuous lamination with the core material under high heat and pressure. This creates a durable, smooth, and lightweight panel.
To enhance their aesthetic appeal and weather resistance, ACM panels are coated with a protective layer. Popular coatings include PVDF, which offers superior UV resistance, and polyester coatings, which are suitable for interior applications. These coatings not only provide color but also improve the panel’s durability against environmental elements.
ACM panels are highly customizable. They can be manufactured in a range of colors, finishes, and thicknesses, allowing for complete design flexibility. Whether you’re looking for a standard solid color, a wood-effect finish, or a metallic look, ACM panels can be tailored to suit your project’s aesthetic and functional needs.
The cost of ACM panels can vary depending on factors such as the type of core material (PE vs. fire-retardant), panel thickness, surface finish, and customization. Panels with fire-resistant cores are generally more expensive due to their added safety features. Custom colors and patterns also contribute to higher prices.
Factor | Impact on Cost |
Core Material | Fire-retardant cores cost more than polyethylene (PE). |
Panel Thickness | Thicker panels (6mm) tend to be more expensive. |
Customization | Custom colors or finishes increase cost. |
Project Size | Larger projects may benefit from bulk discounts. |
On average, ACM panels cost between $5 to $20 per square foot, depending on the quality, finish, and core material. For instance, standard PE core panels tend to be more affordable, while fire-resistant panels or those with specialized coatings will increase the cost.
When planning a project involving ACM panels, it's essential to budget for both the material and installation costs. The overall cost will also depend on the size of the project, the complexity of the installation, and the specific requirements of the site. Be sure to consider long-term maintenance costs, as ACM panels are low-maintenance compared to other materials.
Installing ACM panels requires careful preparation. The surface must be clean, flat, and ready to support the panels. Panels can be installed using adhesive bonding, mechanical fasteners, or a combination of both. The panels are typically mounted to a framework or substructure, ensuring proper alignment and spacing.
To install ACM panels, you will need tools such as a saw for cutting, a drill for making holes, and screws or rivets for securing the panels. Adhesive bonding may also be required for certain installations, depending on the panel system.
ACM panels are easy to maintain. They only require occasional cleaning with mild detergent and water to remove dirt and stains. Periodic inspections are recommended to ensure that the panels remain securely fastened and that there are no signs of wear or damage.
Compared to solid aluminum sheets, ACM panels offer significant advantages in terms of weight, ease of handling, and cost. While aluminum sheets are rigid and heavy, ACM panels are lightweight and flexible, making them easier to install and more affordable.
ACM panels outperform traditional materials like wood and stone in terms of cost, durability, and maintenance. While wood may require regular upkeep and stone can be costly and heavy, ACM panels offer a more cost-effective and low-maintenance alternative that mimics the appearance of these materials.
Unlike fiberglass or PVC panels, ACM panels offer superior rigidity, weather resistance, and aesthetic versatility. ACM panels are also stronger and more durable, making them suitable for both exterior and interior applications.

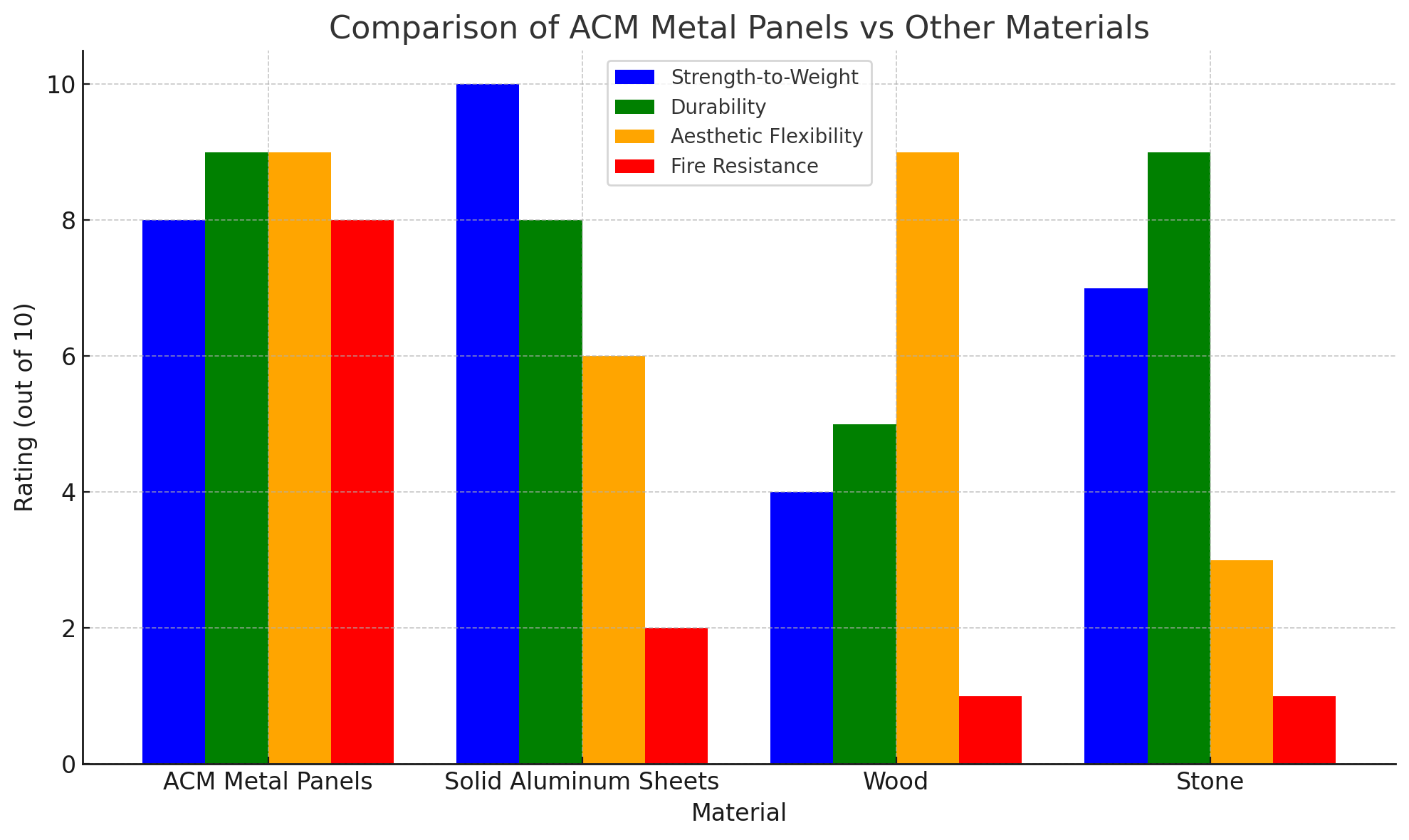

Material | Strength-to-Weight Ratio | Durability | Aesthetic Flexibility | Fire Resistance |
ACM Metal Panels | High | Very Durable | High | Yes |
Solid Aluminum Sheets | Higher | Durable | Limited | No |
Wood | Low | Moderate | High | No |
Stone | High | Very Durable | Low | No |
ACM metal panels are transforming modern construction with their durability, versatility, and aesthetic appeal. These panels are ideal for a wide range of applications, including facades, signage, and interior designs. Whether for new construction or renovation, ACM panels offer a long-lasting, low-maintenance solution. For top-quality ACM panels, GOODSENSE provides products that combine style, performance, and reliability to meet your project needs.
A: An ACM metal panel, or Aluminum Composite Material panel, is a lightweight composite made of two aluminum sheets surrounding a non-aluminum core, typically polyethylene or fire-retardant material.
A: ACM metal panels are highly durable, offering resistance to weather, UV rays, and harsh environmental conditions. Their aluminum outer layers provide strength and long-lasting performance.
A: ACM panels are used for exterior facades, signage, interior partitions, and even industrial applications. Their versatility makes them ideal for both aesthetic and functional purposes.
A: Yes, certain ACM panels with fire-retardant cores provide fire resistance, ensuring compliance with building codes for safety.
A: Compared to solid aluminum sheets, ACM panels are lighter, easier to install, and more cost-effective. They offer superior durability and aesthetic flexibility compared to traditional materials like wood or stone.
