Premium Aluminum Composite Material (ACM): Advanced Building Facades by Goodsense
What is Aluminum Composite Material (ACM)?
Aluminum Composite Material (ACM) is a versatile building material consisting of two aluminum sheets bonded to a core material. This sandwich-like construction creates a lightweight yet rigid panel system that has revolutionized modern architectural facades.
Goodsense has been at the forefront of ACM innovation since 1996, producing over 15 million square meters annually from our state-of-the-art 150,000 m² manufacturing facility in Guangzhou, China.
Versatility
Durability
Aesthetics
Installation
Comprehensive ACM Solutions by Goodsense
| Feature | Standard ACM | Fire - Rated ACM | Aluminum Core Composite Panel |
| Core Material | Polyethylene (PE) | Fire - Resistant (FR) Material | All - Aluminum Corrugated Core |
| Fire Rating | B2 | B1 | A2 (Non - Combustible) |
| Weight | 5.5 kg/m² (4mm) | 7.3 kg/m² (4mm) | 4.3 kg/m² (4mm) |
| Recyclability | Partially Recyclable | Partially Recyclable | 100% Recyclable |
| Rigidity | Good | Good | Superior |
| Applications | General Purpose Facades | Commercial Buildings | High - Rise & Safety - Critical Applications |
| Price Point | Standard | Mid - Range | Premium |

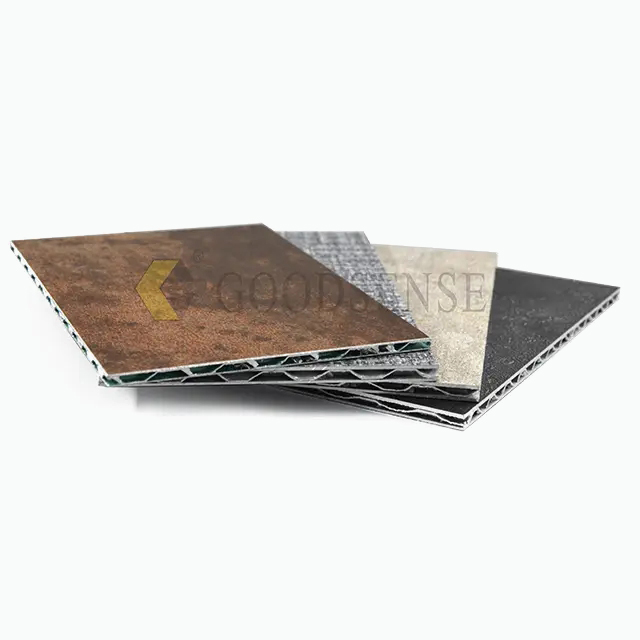

Aluminum Core Composite Panel: The Evolution of ACM Technology
The aluminum core composite panel represents the next generation of ACM technology. Developed by Goodsense's R&D team, this innovative product replaces traditional polymer cores with an advanced corrugated aluminum core structure, delivering unprecedented performance benefits while maintaining competitive pricing.
Superior Fire Safety
A2 fire rating certification (non-combustible)
All-aluminum construction eliminates polymer-based fire risks
Compliant with the strictest international building codes
Ideal for high-rise buildings and safety-critical applications
Exceptional Strength-to-Weight Ratio
30% stronger than traditional ACM of equal thickness
Maintains lightweight advantages for easy installation
Enhanced rigidity reduces panel size limitations
Superior wind load resistance for demanding environments
100% Recyclable Construction
Fully recyclable aluminum structure
Zero polyethylene content
Reduced carbon footprint
Contributes to LEED and green building certifications
Innovative Core Technology
Proprietary corrugated aluminum core design
Advanced bonding technology for superior delamination resistance
Enhanced thermal and acoustic performance
Exceptional flatness and dimensional stability
Comprehensive Technical Specifications
Dimensions & Physical Properties
Performance Data
Color & Finish Options
Certifications & Compliance
Related Product

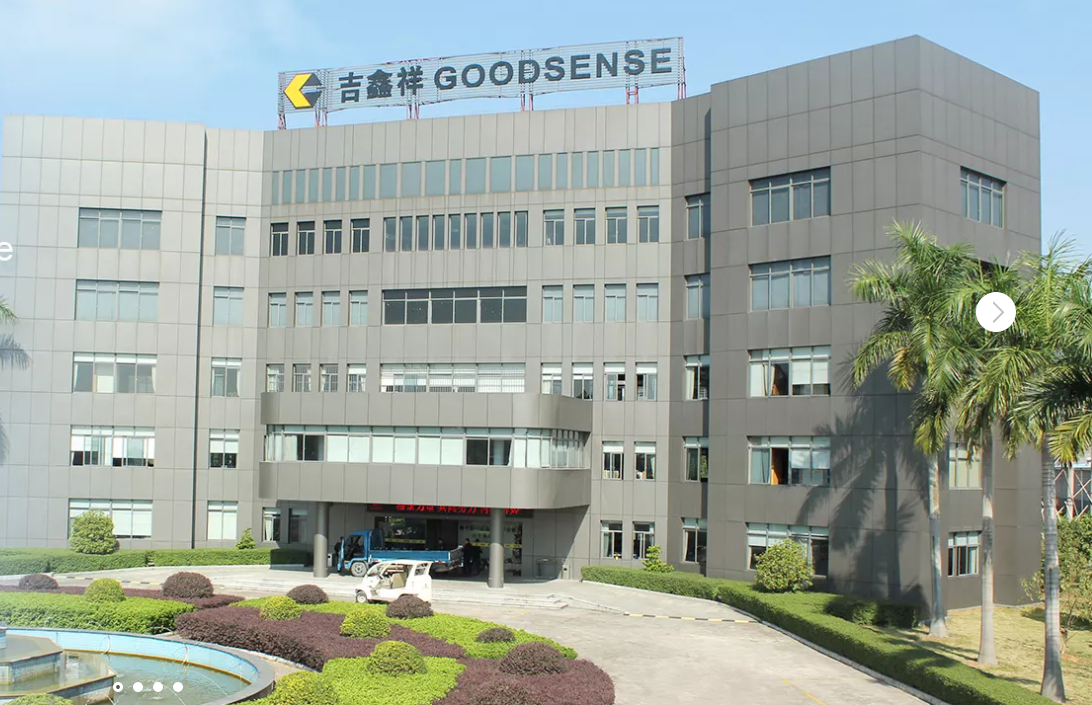

World-Class ACM Manufacturing Facility
Production Capacity
Quality Control
Manufacturing Process
Aluminum composite material has revolutionized architectural design with its versatility, durability, and aesthetic flexibility. Explore how Goodsense ACM products are utilized across a diverse range of applications worldwide.
Commercial Building Facades
Office Buildings
Shopping Centers
Hotels & Resorts
Entertainment Venues
Transportation Infrastructure
Airport Terminals
Train Stations
Bus Terminals
Toll Gates
Interior
Applications
Wall Cladding
Column Covers
Ceiling Features
Decorative Elements
Specialized Applications
Corporate Signage
Exhibition Displays
Furniture Components
Industrial Equipment
Installation & Technical Support
Proper installation is essential for maximizing the performance and aesthetic appeal of aluminum composite materials. Goodsense provides comprehensive technical guidance and support for all ACM products, ensuring optimal results across diverse architectural applications worldwide.
Sustainable Building with Aluminum Composite Materials
Goodsense is committed to sustainable manufacturing practices and developing environmentally responsible building products. Our aluminum composite materials contribute to green building objectives through recyclability, energy efficiency, and long-term durability.
Material Sustainability
Aluminum components are 100% recyclable without quality degradation
Aluminum Core Composite Panels are fully recyclable at end of life
Long service life (40+ years) reduces replacement waste
Lightweight design reduces transportation carbon footprint
Green
Manufacturing
Solar-powered production facility reducing carbon emissions
Waste recovery and recycling programs
Water conservation and recycling systems
Energy-efficient manufacturing equipment
Green Building Contributions
Contributes to LEED, BREEAM, and Green Star certification points
Enhanced thermal performance improves building energy efficiency
Reflective finishes can reduce cooling loads
Durable materials reduce lifetime resource consumption
Certifications
ISO 14001 Environmental Management System
ISO 50001 Energy Management System
Green Building Material Certification
Environmental Product Declarations available
Custom ACM Solutions for Architectural Innovation
Goodsense offers comprehensive customization capabilities for architects and designers seeking unique aluminum composite material solutions. Our technical expertise and advanced manufacturing facilities enable us to transform creative concepts into reality.
Custom Dimensions & Shapes
Non-standard panel sizes up to 2000mm × 6000mm
Custom thickness options from 2mm to 8mm
Curved and bent panels for distinctive architectural elements
Custom corner and edge treatments
Custom Finishes & Aesthetics
Unlimited color matching capabilities (Pantone, RAL, custom)
Specialized finishes: ultra-high gloss, textured, brushed, etc.
Digital printing for images, patterns, and textures
Custom perforation patterns and designs
Performance Customization
Enhanced fire rating for specific building codes
Reinforced panels for high-impact areas
Additional weather resistance for extreme environments
Specialized acoustic performance modifications
Design Support Services
Collaboration with architectural teams
Material selection guidance
Performance specification development
Mock-up and sample production
3D visualization services
Custom Project Process
Initial consultation and requirements analysis
Technical feasibility assessment
Sample development and testing
Full specification development
Production and quality assurance
Delivery and technical support
Keep in Touch with Us
Have questions about Goodsense aluminum composite materials? Ready to request samples or a project quote? Our technical experts are available to provide information, specifications, and personalized assistance for your specific requirements.
Contact Information:
FAQs About Aluminum Composite Materials
-
Q: What is aluminum composite material (ACM)?
A: Aluminum composite material (ACM) is a type of flat panel that consists of two thin aluminum sheets bonded to a core material. This sandwich-like construction creates a material that is both lightweight and rigid, making it ideal for architectural applications like building facades, signage, and interior design elements.
-
Q: How long do aluminum composite panels last?
A: When properly installed and maintained, aluminum composite panels can last 40+ years. Goodsense ACM panels feature high-quality PVDF coatings that offer excellent color retention and weather resistance, ensuring decades of performance even in challenging environments.
-
Q: Are aluminum composite panels fire-resistant?
A: Goodsense offers multiple fire-rating options for our aluminum composite panels. Our standard ACM has a B2 rating, our fire-rated ACM has a B1 rating, and our aluminum core composite panels achieve an A2 (non-combustible) rating, suitable for high-rise buildings and safety-critical applications.
-
Q: What makes aluminum core composite panels different from standard ACM?
A: Unlike standard ACM panels that use a polymer-based core, our aluminum core composite panels feature an all-aluminum structure with a corrugated aluminum core. This provides superior fire resistance (A2 rating), 100% recyclability, enhanced strength, and improved dimensional stability.
-
Q: What thickness options are available for ACM panels?
A: Goodsense offers ACM panels in 3mm, 4mm, 5mm, and 6mm standard thicknesses. Custom thicknesses between 2mm and 8mm can be manufactured for specific project needs.
-
Q: How are aluminum composite panels installed?
A: ACM panels can be installed using several systems including cassette systems, revealed fastening systems, concealed fastening systems, and structural adhesive systems. The appropriate installation method depends on the specific project requirements, budget considerations, and aesthetic preferences.
-
Q: What maintenance do ACM panels require?
A: ACM panels require minimal maintenance. Regular cleaning with mild soap and water is typically sufficient to maintain appearance. No special treatments, coatings, or refinishing is needed throughout the product's lifecycle.
-
Q: What is the minimum order quantity (MOQ) for Goodsense ACM?
A: The standard MOQ is 500 square meters per color for stock colors. For custom colors, the MOQ is 1,000 square meters. However, we can accommodate smaller quantities for sample orders and special projects.
-
Q: What is the typical lead time for ACM orders?
A: Standard colors typically have a 2-3 week production lead time. Custom colors and finishes generally require 3-4 weeks. Shipping time varies by destination. For large projects, we recommend consulting with our sales team for accurate timeline estimates.
