Looking to upgrade your building’s appearance with durable and stylish materials? Aluminum composite panels (ACPs) are the perfect solution. Widely used for facades, signage, and interior cladding, they offer exceptional strength and visual appeal.
In this guide, we’ll show you how to install aluminum composite panels step by step. You’ll learn about the essential tools, safety precautions, and common mistakes to avoid. By the end, you’ll be ready to tackle your ACP installation project with confidence.
Before diving into the installation process, it’s important to understand what an aluminum composite panel is and why it's so widely used in construction.
An aluminum composite panel (ACP) consists of two thin layers of aluminum, with a core material sandwiched between them. The core is often made from polyethylene (PE) or, for enhanced fire resistance, a mineral-filled fire-retardant (FR) core. This structure gives the panel its strength, rigidity, and excellent thermal insulation properties.
The aluminum exterior provides durability and resistance to corrosion, while the core material adds lightweight properties without compromising strength. The combination of these materials makes ACPs ideal for use in a variety of environments, both indoor and outdoor.
● Durability: Aluminum composite panels are highly resistant to weathering, corrosion, and impact, making them an excellent choice for external applications.
● Lightweight: Despite their robust structure, ACPs are lightweight, which makes them easier to handle and install.
● Aesthetic Appeal: ACPs come in a wide range of colors, finishes, and textures, making them a versatile material for creating sleek, modern facades.
● Ease of Installation: Thanks to their lightweight nature and customizable size, aluminum composite panels are easier and quicker to install compared to traditional materials like stone or concrete.
ACPs are used across multiple sectors, including:
● Building Facades: Enhancing the exterior of buildings with a modern, clean look.
● Interior Cladding: For walls, ceilings, and partition walls in commercial and residential buildings.
● Signage: Used for both indoor and outdoor signage due to their durability and ease of printing on the surface.
● Canopies and Awnings: Providing lightweight yet strong protection from the elements.
Having the right tools and materials is crucial for a successful installation. Below is a list of essential equipment you will need to ensure your aluminum composite panels are installed securely and efficiently.
● Tape Measure: For precise measurements of the area and the panels.
● Circular Saw: With a fine-tooth blade, for clean cuts of aluminum panels.
● Drills: For creating holes for fasteners or for pre-drilling panels.
● Screws and Rivets: To securely attach the panels to the substructure.
● Clamps: To hold panels in place during installation and while cutting.
● Level and Spirit Level: To ensure panels are aligned correctly during installation.
● Aluminum Composite Panels: Ensure you have enough material for the entire project.
● Adhesives: A strong adhesive for bonding panels to the substructure or for fixing joints.
● Fasteners: Depending on your chosen installation system, you’ll need mechanical fasteners like screws, rivets, or clips.
● Sealants: Weather-resistant sealants to ensure the joints are waterproof and airtight.
Installing ACPs requires handling sharp tools and large panels. Proper safety measures should always be in place:
● Gloves: To protect your hands from sharp edges.
● Goggles: To protect your eyes from debris and dust.
● Construction Boots: To protect your feet when lifting heavy panels.
● Dust Mask: To avoid inhaling dust and particles, especially during cutting or sanding.
The installation of aluminum composite panels requires careful preparation and precision. Below is a detailed step-by-step guide to help you install ACPs correctly and effectively.
Before starting, it’s essential to prepare the installation site properly. The preparation phase lays the groundwork for the entire installation process, ensuring the ACPs fit correctly and are installed safely.
● Inspect the Surface: Ensure the surface where you will install the panels is clean, dry, and stable. Repair any imperfections or unevenness in the wall.
● Mark Control Lines: Measure the area carefully and mark control lines on the surface. These lines will serve as a guide for positioning your panels to ensure they are installed level and straight.
A sturdy substructure is critical for a successful ACP installation. The substructure provides the support that holds the panels securely in place.
● Install the Substructure: This usually involves attaching metal channels, rails, or brackets to the wall or structural framework.
● Check for Alignment: Use a spirit level to make sure the substructure is aligned both horizontally and vertically. Any misalignment can result in crooked panels and a poor final look.
Once the substructure is in place, it’s time to cut the panels to the correct size. Accurate cutting is crucial to achieving a professional finish.
● Measure the Panels: Use your tape measure to determine the size of each panel needed for the installation.
● Cut the Panels: Use a circular saw with a fine-tooth blade to make clean cuts. When cutting, ensure that the panels are securely clamped to prevent vibrations or movement.
Now that you have the correctly sized panels, it’s time to install them.
● Apply Adhesive (Optional): If you are using adhesive bonding, apply it evenly to the back of the panels. Follow the manufacturer’s instructions for the adhesive you are using.
● Align the Panel: Position the first panel along the control lines, ensuring it is level and aligned with the substructure.
● Press into Place: Firmly press the panel into place. Use clamps or temporary supports to hold it in position while you work on the other panels.
Once the panels are aligned and positioned, it’s time to secure them to the substructure.
● Use Fasteners: Depending on the manufacturer’s instructions, you may need to use screws, bolts, or rivets to secure the panels. Be sure to space the fasteners evenly and ensure they penetrate deep enough into the substructure.
● Follow Manufacturer Guidelines: Always adhere to the recommended spacing and quantity of fasteners for optimal security.
For a professional finish, install trim pieces around the edges of the panels. These trim pieces will cover the exposed edges and provide a sleek, polished look.
● Apply Sealants: Seal the joints between the panels with high-quality weatherproof sealants to prevent water infiltration and maintain the integrity of the installation.
● Install Trim Pieces: Add corner profiles, J-channels, or edge caps to cover the joints and complete the aesthetic.
After installation, inspect the entire area to ensure everything is properly aligned and secure.
● Inspect for Misalignment: Use a spirit level to double-check that all the panels are level and aligned.
● Clean the Panels: Wipe down the panels to remove any dust, debris, or adhesive residue. Use a microfiber cloth for a streak-free finish.
Step | Description |
Preparation and Planning | Inspect the surface and mark control lines for alignment. |
Substructure Setup | Install a sturdy substructure to support the panels. |
Cutting and Sizing | Measure and cut the panels accurately. |
Panel Installation | Apply adhesive or use fasteners to secure the panels. |
Securing and Fastening | Use screws, bolts, or rivets to securely fasten the panels. |
Finishing and Sealing | Apply sealants and install trim pieces for a polished finish. |
Inspection and Cleaning | Inspect alignment and clean the panels for a final touch. |
While installing aluminum composite panels, it's easy to make mistakes. Avoiding these common pitfalls will ensure a smoother installation process and a higher-quality final product.
Misalignment can ruin the aesthetic of your installation. Always check the alignment of each panel as you go to avoid crooked or uneven surfaces.
Over-tightening screws or bolts can damage the panels or cause them to warp. Use the recommended torque settings for each fastener to prevent this issue.
ACPs expand and contract with temperature changes. Be sure to leave adequate space between panels to accommodate this movement.
Each manufacturer provides specific installation instructions. Skipping these steps can result in an improper installation and may void warranties.
Proper maintenance ensures that aluminum composite panels remain durable and visually appealing over time.
Regular cleaning is essential to keep the panels looking fresh. Use a mild detergent and a soft cloth to clean the surface. Avoid abrasive cleaners or tools that can scratch the finish.
Check the panels periodically for signs of wear, scratches, or damage. Addressing minor issues early can help prevent more serious problems down the line.
For minor scratches, touch-up paint or repair kits designed for ACPs can help restore the surface. Replace panels that are significantly damaged to maintain the integrity of the installation.

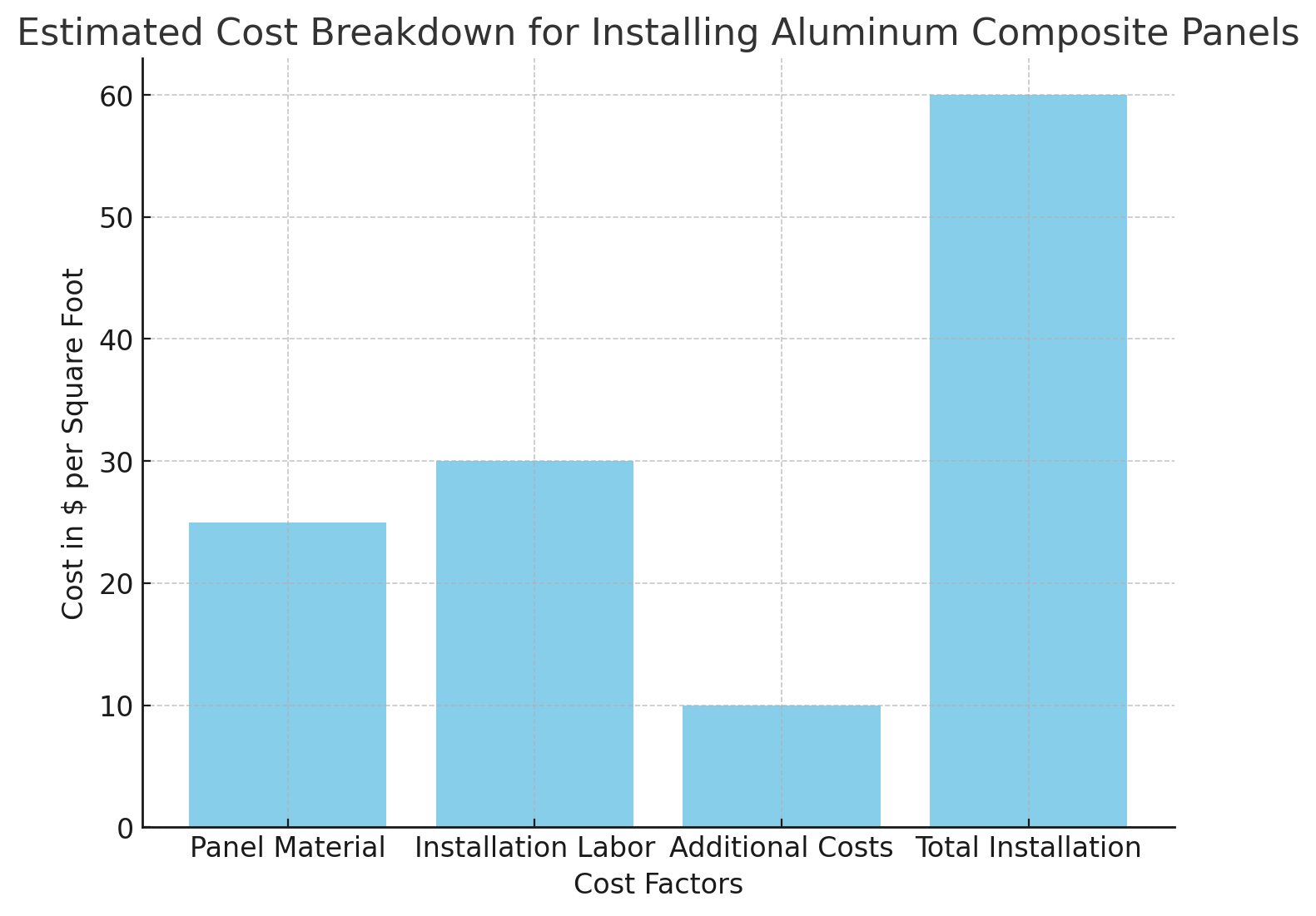

Before you begin your ACP installation, it's important to understand the costs involved. Here's a breakdown of factors affecting pricing:
The price of aluminum composite panels depends on various factors:
● Core Material: Fire-resistant cores tend to be more expensive than standard polyethylene cores.
● Size and Thickness: Larger panels or thicker materials generally cost more.
● Custom Features: Custom colors, finishes, or branding can increase the cost of the panels.
Installation costs for aluminum composite panels typically range from $35 to $60 per square foot. This includes both the material and labor costs.
To stay within your budget, carefully assess the project size, panel type, and any custom requirements. Always factor in the cost of installation labor and additional materials like adhesives and fasteners.
Installing aluminum composite panels (ACPs) can enhance both the aesthetic and durability of any building project. Following the proper installation steps ensures long-lasting and professional results. Regular maintenance keeps your panels in optimal condition. For more complex installations or guidance, consulting professionals ensures a flawless finish. GOODSENSE offers high-quality ACP products designed for durability and ease of installation, providing value to your construction projects.
A: An aluminum composite panel (ACP) is a lightweight material consisting of two aluminum layers with a core in between. To install it, you need to prepare the surface, install a sturdy substructure, and secure the panels with fasteners or adhesive.
A: Aluminum composite panels are durable, weather-resistant, and lightweight. They offer an aesthetic appeal and are easy to maintain, making them ideal for building facades and interior cladding.
A: Use a circular saw with a fine-tooth blade to cut aluminum composite panels to the required size. Always secure the panel firmly to avoid vibrations during cutting.
A: The cost of installing aluminum composite panels depends on factors like the type of core material, panel size, and complexity of the installation. On average, it ranges from $35 to $60 per square foot.
A: While installing aluminum composite panels can be a DIY project with the right tools and planning, it's advisable to consult professionals for large-scale or complex installations to ensure a flawless finish.
A: Regularly clean aluminum composite panels with a mild detergent and inspect for any damage. Sealant joints should also be checked periodically to ensure weatherproofing.
