Cutting aluminum honeycomb panels is a delicate process requiring the right tools and techniques. Have you ever wondered how to cut them without damaging the material? In this article, we will explore the best practices for cutting aluminum honeycomb panels, focusing on the tools you need and the methods for achieving clean, precise cuts. You'll learn how to cut aluminum honeycomb boards effectively for various applications like aerospace and construction.
Aluminum honeycomb is a composite material composed of thin aluminum skins surrounding a honeycomb core. The core's unique hexagonal structure provides the material with remarkable strength-to-weight ratio, making it ideal for applications in aerospace, transportation, architecture, and more. The material is widely used for its ability to absorb shock, offer thermal insulation, and maintain rigidity while being lightweight.
Cutting aluminum honeycomb panels presents specific challenges due to their structure. The thin outer skins, typically between 0.5 to 0.8mm thick, may be easily damaged if not handled correctly. Additionally, the honeycomb core can collapse or be disturbed during cutting, leading to broken cells or uneven cuts. To overcome these challenges, it is essential to use the proper tools and cutting methods to ensure a clean, precise cut without compromising the integrity of the panel.
Aluminum honeycomb panels are distinct from other materials due to their unique core structure. The honeycomb pattern is made up of interconnected hexagonal cells that provide significant strength with minimal weight. This makes the material ideal for structural applications where weight is a critical factor, such as in aerospace and automotive industries. However, the lightweight and flexible structure also makes the material more sensitive to the forces applied during cutting. This is why special tools and careful cutting techniques are necessary.
The core itself is composed of air-filled cells that occupy around 97% of the panel's volume. As a result, the honeycomb structure is highly efficient at providing rigidity and shock absorption without adding significant weight, a key reason why it is so widely used in engineering and manufacturing. Cutting the panel correctly is essential to maintain these benefits and avoid damaging the integrity of the material.
● Lightweight: Aluminum honeycomb panels are incredibly light due to the air-filled cells in the core, making them ideal for industries where weight is a critical factor.
● High Strength: Despite their light weight, these panels are highly rigid, providing structural integrity without compromising strength.
● Thermal Insulation: The honeycomb structure helps with thermal insulation, making these panels suitable for environments where heat resistance is necessary.
● Shock Absorption: Aluminum honeycomb is excellent at absorbing impact, which is why it's often used in applications requiring durability and resistance to physical stress.
Selecting the correct saw blade for cutting aluminum honeycomb boards is critical to achieving clean cuts. The most common saw blades used for this purpose are circular saw blades with carbide tips. These blades are specifically designed to handle the material's unique properties.
● Blade Diameter: For cutting aluminum honeycomb panels, a circular saw blade with a diameter of approximately 305mm is often recommended.
● Tooth Count: A blade with a tooth count of around 100 to 120 teeth is ideal, providing the precision required to prevent damage to the thin skins and core.
● Blade Thickness: A blade thickness of 2.2mm to 2.5mm is typically optimal. Blades that are too thin may wear out too quickly, while thicker blades can cause uneven cuts.
It’s also essential to consider the tooth shape. A blade with alternating teeth or TP teeth (high-low teeth) can help with chip removal and provide sharper cuts. However, such blades tend to have a shorter lifespan.
Specification | Description |
Blade Diameter | 305mm (commonly recommended size) |
Tooth Count | 100T - 120T for precision and smooth cuts |
Blade Thickness | 2.2mm - 2.5mm is optimal to avoid quick wear or uneven cuts |
Tooth Shape | Alternating teeth or TP teeth (high-low) for efficient cutting |
In addition to the right blade, choosing the proper saw and cutting equipment is vital for accurate cuts. Here are some tools commonly used for cutting aluminum honeycomb panels:
● Handheld Saws: For smaller cutting tasks, a circular saw or jigsaw with the correct blade can provide efficient results.
● Table Saws: A table saw equipped with the proper blade is ideal for more precision and larger cuts. This is especially useful for cutting panels into consistent, straight sizes.
● Precision Panel Saws: These saws provide the highest level of accuracy and are commonly used in professional workshops where large-scale cutting is needed. They offer enhanced stability, which minimizes vibrations that could lead to jagged cuts.
Before starting the cutting process, proper preparation and safety precautions are essential:
● Wear PPE: Personal protective equipment, such as gloves, goggles, and masks, should always be worn to protect from debris and aluminum dust.
● Secure the Panel: Ensure that the aluminum honeycomb panel is securely fixed to a stable surface before cutting. This prevents movement during the cutting process, which could result in inaccurate cuts or damage.
● Set the Cutting Speed: Cutting aluminum honeycomb panels requires a slower, controlled speed. Going too fast can result in uneven cuts, while excessive pressure can damage the panel or the saw blade. Always aim for a steady and controlled cutting motion.
Cutting Speed | Blade Life | Resulting Quality |
Slow and Steady | Longer blade life | Smoother cuts, minimal wear on material and blade |
Fast Cutting | Shorter blade life | Rougher cuts, higher risk of burrs and broken cells |
Ideal Speed | Balanced blade wear | Clean cuts, optimal efficiency |
Using handheld tools to cut aluminum honeycomb boards requires a steady hand and a sharp blade. Here's a step-by-step guide:
1. Mark the Cut Line: Before cutting, mark the desired cut line using a measuring tape and pen. This ensures accuracy.
2. Start Cutting Slowly: Begin cutting slowly along the marked line. Ensure that the saw is aligned vertically to prevent any deflection that could lead to uneven cuts.
3. Keep the Blade Sharp: A sharp blade is crucial to avoid damaging the material. Ensure the blade remains sharp throughout the process to maintain smooth and precise cuts.
Several common problems can arise when cutting aluminum honeycomb panels. Here’s how to avoid them:
● Burrs: Burrs are rough edges that can occur when cutting the panel. To prevent this, ensure that you are using the correct blade and cutting at the right speed.
● Broken Cells: If the core is damaged during cutting, it can lead to broken cells. To prevent this, avoid applying too much pressure and ensure that the saw blade is aligned properly.
● Uneven Cuts: Uneven cuts can result from using dull blades or cutting too quickly. Regularly check the blade for wear and replace it as needed.
For large projects or intricate cuts, CNC (Computer Numerical Control) machines are an excellent choice. These machines offer precise control over the cutting process and can create complex patterns or shapes with high accuracy. CNC machines also minimize the risk of human error, resulting in consistent and reliable cuts.
Laser cutting is another advanced method for cutting aluminum honeycomb panels, particularly when intricate or detailed cuts are required. Laser cutters use a focused beam of light to slice through the material, which allows for highly precise and clean cuts. However, laser cutting can be slower and more expensive than other methods, making it more suitable for specific high-precision applications.
Cutting Method | Description | Pros | Cons |
CNC Machine | Uses computer-controlled machinery for precise cuts | High precision, excellent for complex shapes | Expensive, requires specialized training |
Laser Cutting | Uses a focused beam of light to cut the material | Highly accurate, ideal for intricate designs | Slower and more expensive than saw cutting |
Traditional Sawing | Uses handheld or table saws to cut the material | Cost-effective, easy to use | Less precise, can lead to uneven cuts or damage |
Burrs and jagged edges are common when cutting aluminum honeycomb panels. To fix this, use a deburring tool to smooth out the edges. You can also use fine-grit sandpaper to polish the cut areas, ensuring a clean and professional finish.
If the honeycomb core is damaged or the edges are bent during cutting, it can compromise the panel’s structural integrity. In such cases, trimming the damaged areas and reinforcing the edges with adhesive or another layer of aluminum skin can restore the panel. For more severe damage, replacing the panel may be necessary.

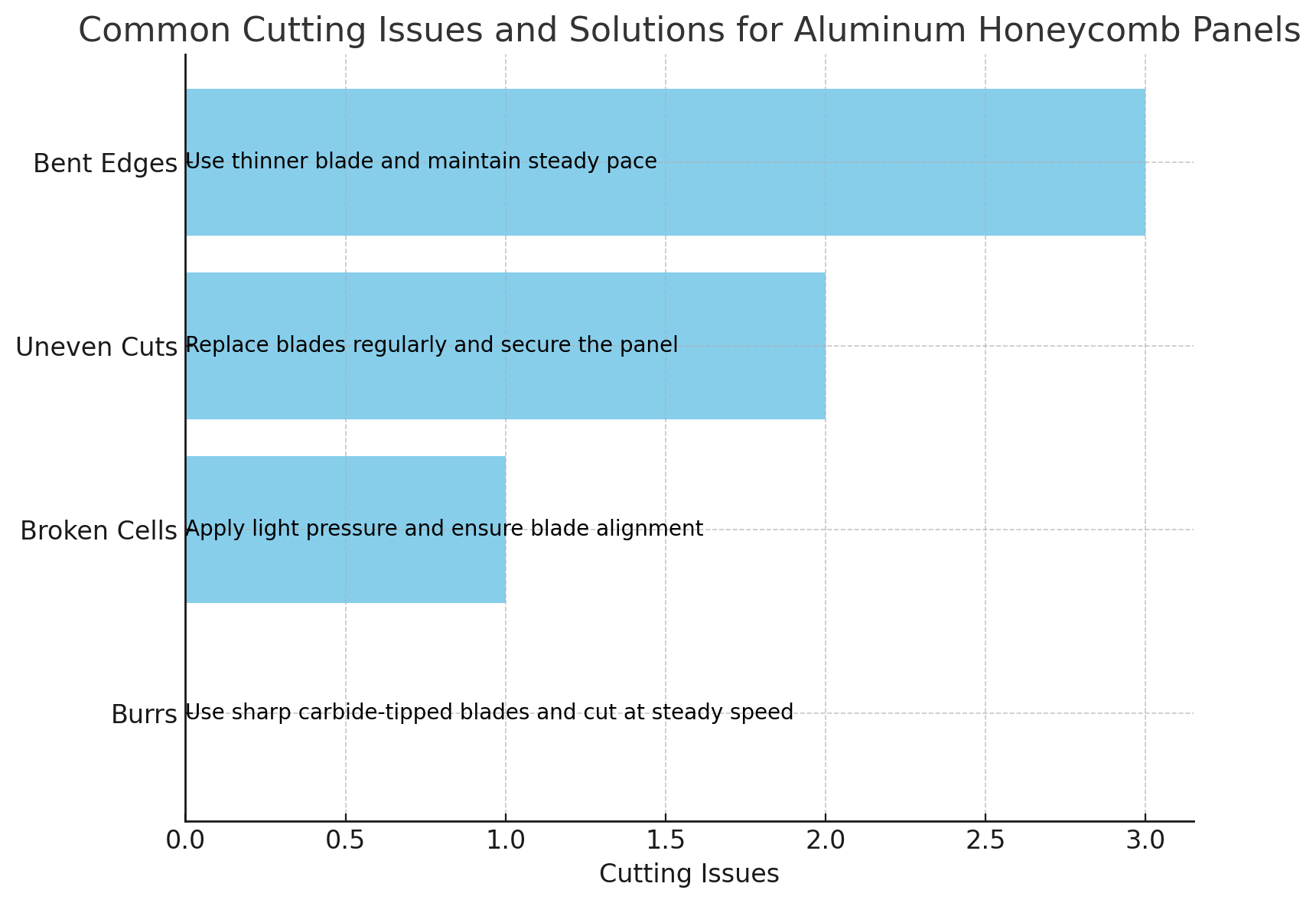

Issue | Cause | Solution |
Burrs | Dull blades or incorrect cutting speed | Use sharp carbide-tipped blades and cut at a steady speed |
Broken Cells | Excessive pressure on the honeycomb core during cutting | Apply consistent, light pressure and ensure proper blade alignment |
Uneven Cuts | Dull blades or improper alignment of the panel | Regularly replace blades and ensure the panel is securely clamped |
Bent Edges | Using a blade that's too thick or cutting too quickly | Use a thinner blade and maintain a steady cutting pace |
Cutting aluminum honeycomb panels requires using the right tools, materials, and techniques. Whether you're using handheld tools, table saws, or CNC machines, it's important to select the correct blade, maintain a steady cutting speed, and secure the panel properly. By avoiding common issues like burrs and broken cells, you can achieve smooth, precise cuts. At GOODSENSE, we provide high-quality aluminum honeycomb boards that deliver excellent performance, ensuring your cutting projects meet industry standards and requirements.
A: To cut aluminum honeycomb panels, use a circular saw with a carbide-tipped blade designed for aluminum. Ensure the panel is secured properly and maintain a steady speed for a smooth, precise cut.
A: No, a standard saw blade may not provide clean cuts. It's essential to use a carbide-tipped blade specifically designed for cutting aluminum honeycomb boards to avoid damage and ensure precision.
A: Handheld saws, table saws, and CNC machines are ideal for cutting aluminum honeycomb boards. Choose the correct blade and ensure the panel is secured to avoid uneven cuts or damage to the core.
A: Aluminum honeycomb boards have a delicate structure with thin skins and a honeycomb core. Specialized cutting techniques prevent damage, such as broken cells, burrs, or bent edges.
A: To avoid burrs, use a sharp, carbide-tipped blade and maintain a slow, steady cutting speed. Also, ensure the panel is securely clamped during the process to prevent movement.
