In the world of architectural cladding and construction materials, terminology can sometimes be confusing. Two terms that often cause uncertainty are ACM and ACP. While they might sound similar, understanding their differences is crucial for architects, contractors, and property owners making decisions about building materials. This comprehensive guide explores the distinctions between Aluminum Composite Materials (ACM) and Aluminum Composite Panels (ACP), their applications, and what you need to know when selecting these materials for your projects.
When professionals discuss architectural cladding options, the terms ACM and ACP frequently appear in conversations. But what exactly do these acronyms mean, and is there a significant difference between them?
ACM stands for Aluminum Composite Material, which refers to the structural composition of the product. ACM material consists of two thin aluminum sheets bonded to a non-aluminum core. This sandwich-like structure creates a material with remarkable properties:
Lightweight yet rigid construction
Excellent flatness and dimensional stability
Superior thermal and acoustic insulation
High strength-to-weight ratio
Enhanced impact resistance
Weather durability and corrosion resistance
The core of ACM materials typically consists of polyethylene (PE), fire-retardant (FR) materials, or mineral-filled cores, depending on the application requirements and fire safety standards.
ACP stands for Aluminum Composite Panel, which typically refers to the finished, ready-to-install product made from ACM material. An aluminum composite panel is the practical application of ACM, cut to specific dimensions and prepared for installation in building projects.
The key features of aluminum composite panels include:
Pre-cut to standard or custom dimensions
Finished edges for installation
Pre-applied finishes and coatings
Ready for mounting using various installation systems
May include additional treatments for specific applications
The simplest way to understand the relationship is:
ACM is the material itself (the raw composite)
ACP is the fabricated panel product made from ACM
This relationship can be compared to how lumber (the material) relates to a finished cabinet door (the product). The confusion often stems from the fact that in practical usage, many industry professionals use these terms interchangeably, particularly in North American markets.
Understanding the composition and manufacturing process provides further clarity on what makes these materials unique and valuable for modern construction.
A typical ACM material consists of three layers:
Top aluminum layer (0.2-0.5mm thick): Usually alloy 3000 or 5000 series aluminum with a protective coating
Core material (2-5mm thick): Typically polyethylene (PE), fire-retardant (FR) material, or mineral-filled core
Bottom aluminum layer (0.2-0.5mm thick): Similar to the top layer, often with a service coating
This sandwich construction creates a panel with exceptional flatness and rigidity while maintaining a relatively light weight compared to solid aluminum of similar thickness.
The manufacturing of ACM panels involves several sophisticated steps:
Aluminum sheet preparation: Cleaning and treatment of aluminum sheets
Core preparation: Extrusion or mixing of core materials
Adhesive application: Specialized adhesives are applied to create a strong bond
Lamination: The layers are pressed together under controlled heat and pressure
Curing: The assembled panels undergo curing to ensure bond strength
Finishing: Application of protective coatings and decorative finishes
Cutting and sizing: Panels are cut to standard or custom dimensions
The core material significantly influences the properties and applications of the finished panels:
PE Core: Standard polyethylene core for general applications
FR Core: Fire-retardant modified core for improved fire performance
A2 Core: Highly non-combustible mineral-filled core for stringent fire safety requirements
Honeycomb Core: Aluminum honeycomb structure for extremely lightweight, rigid applications
Specialized Cores: Various proprietary formulations for specific performance requirements
The distinction between ACM and ACP often varies by region and market context. Here's how these terms are typically used in different parts of the world:
In North America, particularly in the United States and Canada:
ACM is the more commonly used term
The term covers both the material and the finished panels
ACM panel manufacturers typically use ACM in their marketing materials
In Europe, Asia, and other international markets:
ACP is often the preferred terminology
Greater distinction is made between the material and the finished product
Aluminum composite panel is used more frequently in specifications
When reviewing industry specifications, you'll find:
Building codes often reference both terms
Testing standards may use either terminology
Product certifications might list both ACM and ACP designations
When comparing ACM panels and aluminum composite panels, their physical properties are essentially identical since they refer to the same product. Here's a detailed look at their performance characteristics:
| Property | Typical Range | Notes |
|---|---|---|
| ACM panel thickness | 3mm - 6mm | Custom thicknesses available |
| Standard sheet sizes | 4' × 8' to 6' × 24' | ACM panels 4x8 are most common |
| Weight | 3.5 - 8.0 kg/m² | Depends on thickness and core type |
| Rigidity | 15-20 times that of solid aluminum | For equivalent thickness |
| Characteristic | Performance | Comparison to Alternatives |
|---|---|---|
| Thermal insulation | R-value: 0.5-1.0 | Superior to solid aluminum |
| Sound reduction | STC: 25-30 | Better than single-skin metal |
| Fire performance | Varies by core type | FR and A2 cores meet stringent requirements |
| Wind load resistance | High | Excellent for high-rise applications |
| Impact resistance | Good to excellent | Depends on thickness and mounting system |
The versatility of these materials has led to their widespread use in various applications.
Aluminum composite panels are widely used in:
Building facades and cladding
Exterior wall systems
Column covers and beam wraps
Canopies and soffits
Equipment screens
Interior wall panels
Their popularity in architecture stems from their clean, modern appearance, design flexibility, and relatively straightforward ACM panel installation process.
The flat, smooth surface of ACM materials makes them ideal for:
Corporate signage
Wayfinding systems
Retail displays
Exhibition stands
Billboard backing
Digital printing substrates
Beyond standard architectural uses, these panels find application in:
Transportation (bus, train, and marine interiors)
Industrial equipment enclosures
Clean room wall systems
Refrigeration panel systems
Acoustic control elements
Specialty furniture and fixtures
Proper ACM panel installation is crucial for ensuring performance and longevity. Several systems are commonly used:
This traditional method involves:
Attaching panels to a subframe using structural silicone
Sealing joints with high-performance sealant
Creating a weather-tight barrier through continuous sealant joints
Wet seal systems are economical but require careful installation and regular maintenance of sealant joints.
These more advanced systems include:
Rout and return systems where panel edges are routed and bent
Panel attachment to an engineered framing system
Often incorporating rainscreen principles for moisture management
Dry systems typically provide superior long-term performance with reduced maintenance requirements.
High-end cassette systems feature:
Factory-fabricated panel modules with folded edges
Concealed attachment to specialized support systems
Sophisticated joint designs for water management
Premium aesthetic with minimal visible fasteners
While more expensive initially, cassette systems often deliver the best long-term value and performance.
When choosing between various aluminum composite materials for a project, several factors should be considered:
Building codes worldwide have increasingly stringent requirements for facade materials:
Low-rise buildings may permit standard PE core panels
Mid-rise structures typically require FR core materials
High-rise buildings often mandate non-combustible A2 core panels
Always consult local building codes and fire safety regulations before specifying materials.
The visual impact of the facade is influenced by:
Finish type (PVDF, polyester, ceramic, etc.)
Color selection and consistency
Gloss level
Special effects (metallic, prismatic, etc.)
Pattern options (solid, woodgrain, stone-look, etc.)
Premium manufacturers like Goodsense offer extensive finish options to meet virtually any design vision.
Location-specific environmental conditions impact material selection:
Coastal environments require superior corrosion resistance
Harsh winter climates demand excellent freeze-thaw durability
Urban pollution exposure may necessitate self-cleaning coatings
UV exposure levels influence coating type selection
Cost factors extend beyond just material price:
Initial material cost
Fabrication complexity and cost
Installation system requirements
Long-term maintenance expenses
Expected service life
Energy performance impact
The global market for ACM panel manufacturers is competitive, with several key players dominating different regions.
Leading manufacturers include:

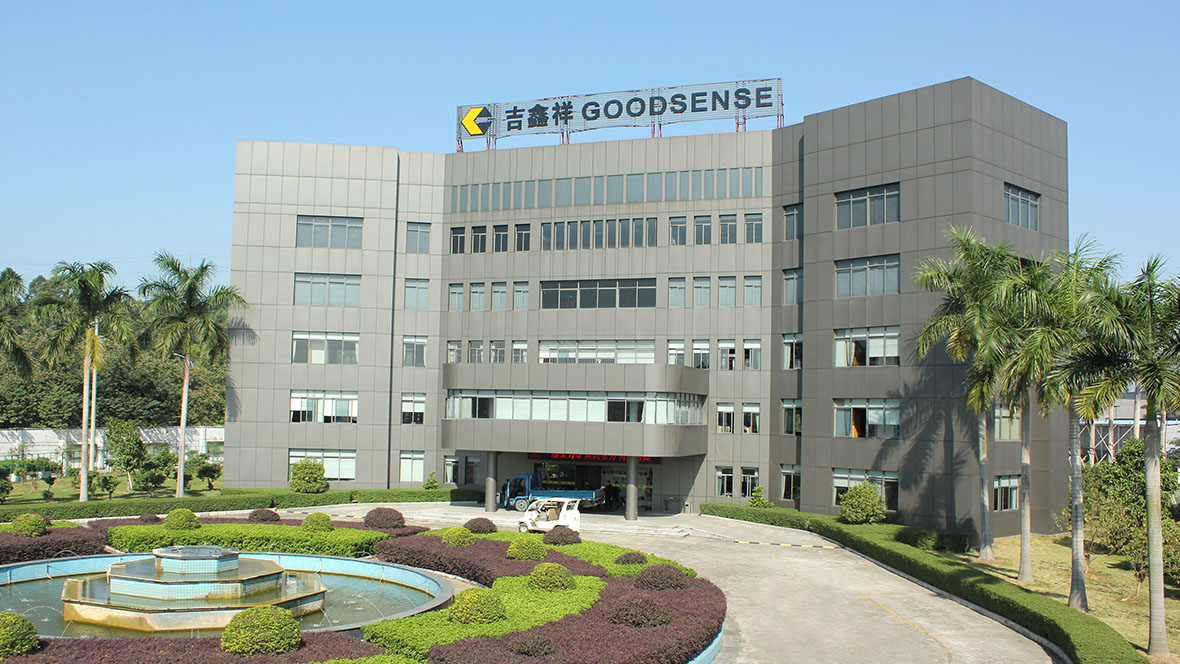

Goodsense (Guangzhou Goodsense Decorative Building Materials Co., Ltd.)
Goodsense stands out in the market for several reasons:
Established in 1996 with decades of manufacturing experience
150,000 square meter production facility with 15 professional production lines
Annual production capacity of 15 million square meters of ACM
Comprehensive testing and quality control processes
Full range of core types and finishes
Strong focus on sustainability and environmental responsibility
ISO certified manufacturing processes
Global distribution network
The aluminum composite panel industry continues to evolve with several notable trends:
Increased focus on fire safety following high-profile facade fires
Growth in non-combustible core options
Development of antimicrobial surfaces for healthcare applications
Expansion of digital printing capabilities
Integration with building information modeling (BIM)
Push toward more sustainable and recyclable materials
Innovation in textured and three-dimensional surface options
Modern construction increasingly prioritizes environmental impact, and ACM materials have several sustainability aspects to consider.
Aluminum composite panels offer favorable end-of-life scenarios:
Aluminum facing sheets are 100% recyclable
Some core materials can be separated and recycled
Manufacturers increasingly offer take-back programs
Recycled content options are becoming more widely available
When properly installed as part of a wall system, these panels can contribute to building energy efficiency:
Thermal break effect of the core material
Reflective finishes can reduce solar heat gain
Ventilated facade installations improve building envelope performance
Reduced structural requirements can lower embodied energy
Many ACM panel manufacturers now offer products with environmental certifications:
EPDs (Environmental Product Declarations)
Health Product Declarations
LEED contribution documentation
BREEAM compliance information
VOC emissions certifications
Goodsense, for example, has obtained national green building materials certification for all its products, emphasizing their commitment to sustainable development.
Several misconceptions persist about these materials in the industry:
A common search query is"ACM material asbestos" due to confusion with the abbreviation ACM sometimes used for Asbestos Containing Materials in environmental reports.
Truth: Modern aluminum composite materials do NOT contain asbestos. The confusion stems purely from the shared acronym. ACM in architectural contexts refers exclusively to Aluminum Composite Material.
Following some high-profile facade fires, there's a misconception that all composite panels are dangerous.
Truth: While PE core panels have limitations regarding fire performance, properly specified FR and A2 core panels meet stringent fire safety standards. The key is selecting the appropriate core type for the specific building requirements and ensuring proper installation.
Some project planners avoid considering these materials due to perceived high costs.
Truth: While premium options exist, standard aluminum composite panels are often cost-competitive with other high-performance cladding materials when considering:
Reduced structural requirements due to lightweight
Faster installation times
Lower long-term maintenance costs
Extended service life
Potential energy savings
Finding quality aluminum composite materials requires understanding the supply chain and availability options.
When searching for "Aluminum Composite material near me", consider these sources:
Direct from manufacturers like Goodsense
Architectural material suppliers
Building product distributors
Facade specialty companies
Sign supply distributors (for signage applications)
While ACM panels 4x8 (4 feet by 8 feet, or approximately 1220mm × 2440mm) are the most common stock size, most manufacturers offer:
Multiple standard sizes
Custom length panels (up to 24 feet/7.3 meters in some cases)
Custom width options
Made-to-order thickness configurations
Special order core formulations
Custom finish development for larger projects
Project planning should account for:
Standard stock items: typically 1-2 weeks
Standard made-to-order items: 4-6 weeks
Custom colors and finishes: 6-10 weeks
Project-specific customizations: 8-12 weeks
International shipping: additional 2-8 weeks
Properly specified and installed aluminum composite panels offer excellent longevity with minimal maintenance requirements.
With proper installation and maintenance:
Premium PVDF-coated panels: 20-30+ years
Standard polyester finishes: 10-15 years
Structural integrity: Often exceeds coating lifespan
Routine maintenance is straightforward:
Regular cleaning with mild soap and water
Avoidance of abrasive cleaners or tools
Periodic inspection of sealants and attachment points
Prompt repair of any damage to prevent moisture infiltration
In the event of damage:
Individual panels can typically be replaced
Color matching for replacements is generally good with premium finishes
Localized repairs are possible for minor damage
Panel refurbishment can extend facade life in some cases
Examining real-world applications helps illustrate the versatility and performance of aluminum composite materials.
Modern office buildings benefit from ACM facades due to:
Clean, contemporary aesthetic
Design flexibility for corporate identity
Excellent weathering performance
Good thermal performance as part of a wall system
Relatively rapid installation compared to alternatives
Retail and hospitality projects leverage ACM for:
Brand expression through custom colors and finishes
Design continuity across multiple locations
Durability in high-traffic environments
Ability to create curved and complex forms
Integration with signage and lighting elements
Airports, train stations, and other transportation hubs utilize ACM for:
Large-scale visual impact
Weather resistance in exposed conditions
Ability to create sweeping curved forms
Low maintenance requirements
Excellent longevity in demanding environments
Goodsense has supplied materials for numerous high-profile projects worldwide, demonstrating the versatility and reliability of their aluminum composite panel products.
The ACM panel industry continues to evolve with several promising developments on the horizon.
Research continues into:
New core formulations with improved fire resistance
Innovative fire-break designs within panel systems
Advanced testing methodologies for real-world performance prediction
Emerging technologies include:
Photovoltaic integration within panel systems
Dynamic shading elements
Environmental sensors embedded in facades
Interactive display capabilities
IoT connectivity for building management systems
Future-focused manufacturers like Goodsense are investing in:
Reduced carbon footprint manufacturing
Increased recycled content
Water-based coating systems
Zero-waste production processes
Fully recyclable panel systems
Professionals with extensive experience in ACM panel installation offer these valuable insights:
Always specify core type based on building code requirements
Consider finish warranty length alongside initial cost
Request actual physical samples for color approval
Specify fabrication tolerances clearly
Require shop drawings for complex applications
Include maintenance documentation in project deliverables
Ensure proper substrate preparation
Follow manufacturer's recommended fastening systems
Allow for thermal movement in mounting systems
Implement proper moisture management details
Use qualified installers with specific ACM experience
Conduct regular quality inspections during installation
Mixing panel lots (can cause color variation)
Inadequate edge clearances
Over-tightening fasteners
Improper joint sealing
Contact with incompatible materials
Failing to protect panels during other construction activities
A1: ACM (Aluminum Composite Material) refers to the composite material itself, while ACP (Aluminum Composite Panel) typically refers to the finished panel product made from ACM. In practice, many professionals use these terms interchangeably, especially in North American markets.
A2: ACM panels consist of two thin aluminum sheets (typically 0.2-0.5mm thick) bonded to a non-aluminum core. The core material varies based on application requirements and can be polyethylene (PE), fire-retardant (FR) material, or mineral-filled (A2) core.
A3: Standard ACM panel thickness ranges from 3mm to 6mm, with 4mm being the most common for exterior applications. Custom thicknesses from 2mm to 10mm are available from some manufacturers for specialized applications.
A4: Premium ACM panels with PVDF finishes typically last 20-30+ years with proper installation and maintenance. The structural integrity of the panels often exceeds the coating lifespan, making them a durable long-term solution for building facades.
A5: Not all ACM panels are fireproof. Fire performance depends on the core material: standard PE cores have limited fire resistance, FR (fire-retardant) cores offer improved performance, and A2 (mineral-filled) cores provide the highest level of fire resistance, meeting the most stringent building code requirements.
A6: ACM panels can be installed using several methods, including wet seal systems (with structural silicone and sealant), dry mechanical systems (with engineered framing), and cassette systems (with factory-fabricated panel modules). The appropriate system depends on project requirements, budget, and aesthetic goals.
A7: Pricing varies significantly based on core type, finish quality, thickness, quantity, and manufacturer. Generally, PE core panels are the most economical, FR core panels are mid-range, and A2 core panels command premium prices. Project-specific factors like customization, fabrication complexity, and installation system also impact overall costs.
Whether referred to as ACM or ACP, aluminum composite materials offer a versatile, durable, and aesthetically pleasing solution for a wide range of architectural and signage applications. Understanding the differences in terminology, core types, finishes, and installation systems is essential for making informed decisions that balance performance, aesthetics, code compliance, and budget.
For projects requiring exceptional quality and reliable performance, manufacturers like Goodsense provide comprehensive product lines with various core options, finishes, and technical support. Their commitment to sustainability and innovation makes them a valuable partner for architects, contractors, and property owners seeking high-performance facade solutions.
By carefully evaluating project requirements, consulting with experienced manufacturers, and working with qualified fabricators and installers, you can successfully implement aluminum composite panel systems that deliver outstanding long-term performance while creating visually striking architectural statements.
Whether you're renovating an existing structure or designing a new landmark building, the versatility and performance of modern ACM/ACP products provide the tools needed to bring your vision to life with confidence in both aesthetic and functional outcomes.
